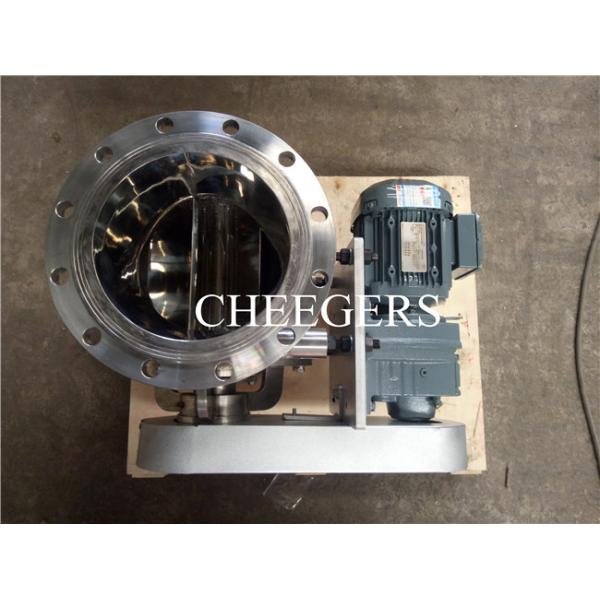

SS304 Stainless Steel Feeder For Oats Flour Handling Pneumantic Rotary Valve
Product Description
Pneumatic rotary valve, also named discharge valve, star discharger, cinder valve, is an important equipment for pneumatic conveying system and dust removal system. It is mainly used to discharge the material continuously from the tripper and dust collector, and make sure the inner pressure not exposed to atmosphere pressure environment. The rotary airlock valve is made of gear motor, sealing element, impellers and rotor housing on which many rotating blades are set. It is capable of discharging powder, small particles, flaky or fiber continuously by the differential pressure of material. Now it has been widely used in chemical, pharmacy, drying, grains, cement, environmental protection and power industry etc.
Application: to be used under cyclone, dust collector, in vaccum system.
Explosive Drawing
Dimension Display
| Type | External dimension | Inlet | Outlet | Install size | Shaft |
| | A | B | H | E | F | D1 | D2 | e | f | h | g | m | D | d | k |
| TGFY-5L | 410 | 300 | 435 | 250 | 170 | Φ222 | Φ152 | 180 | 150 | 160 | 220 | 130 | Φ200 | Φ35 | 50 |
| TGFY-7L | 420 | 310 | 435 | 260 | 180 | Φ250 | Φ162 | 182 | 160 | 160 | 230 | 140 | Φ220 | Φ35 | 50 |
| TFGY-9L | 470 | 310 | 435 | 260 | 230 | Φ270 | Φ192 | 182 | 210 | 160 | 230 | 190 | Φ240 | Φ40 | 50 |
| TGFY-12L | 520 | 370 | 530 | 320 | 238 | Φ288 | Φ208 | 240 | 218 | 190 | 290 | 200 | Φ260 | Φ40 | 50 |
| TGFY-16L | 570 | 370 | 530 | 320 | 280 | Φ330 | Φ250 | 240 | 260 | 190 | 290 | 240 | Φ300 | Φ40 | |
Application
Overseas Exhibitions
Cheegers has been engaged in exhibitions home and abroad for some time, like Thailand, Turkey, Iran, Pakistan, etc.
We supply rotary valves for many brands in China, like Buhler, Sataka, Cofco, Yihai Kerry, Muyang, etc.
Cheegers Advantages
ISO9001:2008 & CE
Professional model selection
Standard project management
Timely delivery & Best service
Professional & experienced engineer’s team
63 years' experience on producing rotary valve
Prompt reply (replies and offers the price in 24 hours)
